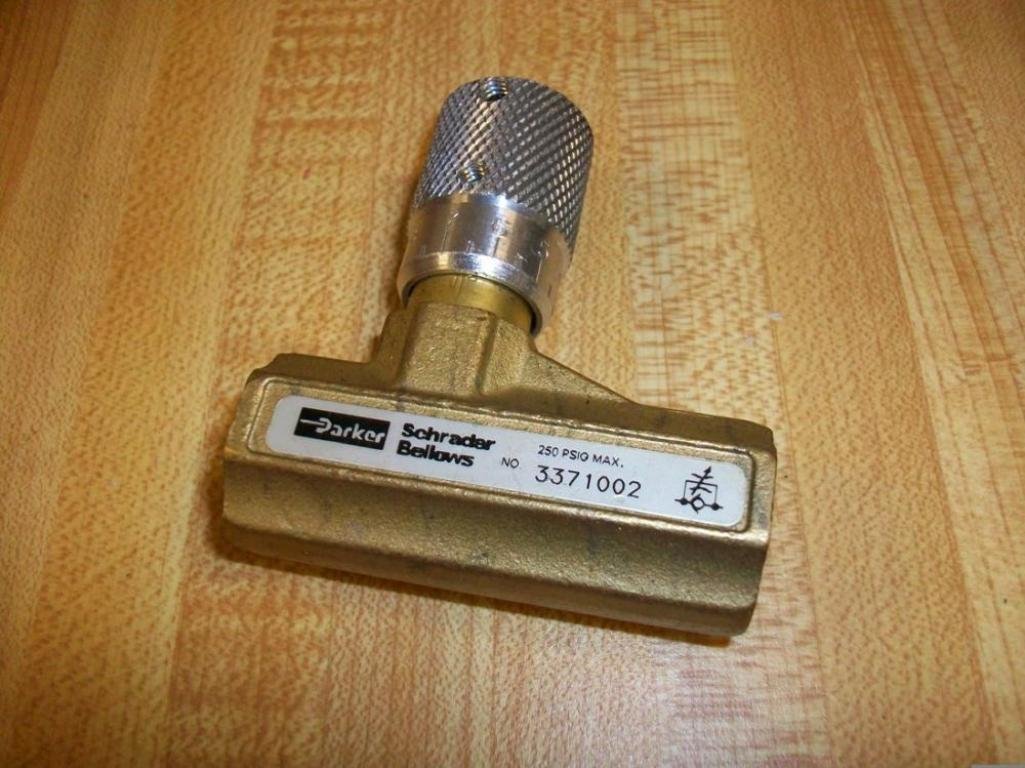

Parker 003371002 337 Series Brass Micrometer Flow Control Valve, 3/8" NPTF Port, 250 psi, Fine Adjustment, 59 scfm
Product details
| Management number | 231405974 | Release Date | 2026/06/18 | List Price | $37.50 | Model Number | 231405974 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The "337" Series Flow Control Valves meter flow of air in one direction and allow free flow in the reverse direction. The "337" Series valves are manufactured with a fine tapered needle providing precise flow control, even at low flow rates. The perimeter of the adjustment knob features numerical micrometer position markings providing a visual indication of the setting. Once the desired flow is selected, a set screw can be tightened to maintain the setting. Stainless steel needle, urethane check seal, buna N needle seals, aluminum knob, stainless steel spring and zinc- plated steel retainer. 2.84" Open height and 2.53" closed height. 59 scfm Adjustable flow and 139 scfm free flow at 100 PSIG inlet pressure with full pressure drop.
- Brass inline flow control valve with aluminum knob
- 250psi Maximum operating pressure
- 0 to 180 degree F operating temperature
- 59 scfm Adjustable flow and 139 scfm free flow
- 3/8" NPTF port size
| ASIN | B003EIKXZW |
|---|---|
| Size | 3/8 Inch |
| Brand Name | Parker |
| Unit Count | 1.0 Count |
| Valve Type | Flow Control Valve |
| Thread Size | 3/8 Inch |
| Thread Type | NPTF |
| Manufacturer | Parker Hannifin |
| Model Number | 003371002 |
| Material Type | Brass |
| Connector Type | Nptf |
| Exterior Finish | Aluminum,Stainless Steel |
| Number of Ports | 2 |
| Maximum Pressure | 250 Pound per Square Inch |
| Specification Met | ASME B16.34, ASTM |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Type | MNPT |
| Manufacturer Part Number | 003371002 |
